Peacock Tai Chi Curved Guilloché Triple-Axis Tourbillon Watch [Limited]

Peacock Tai Chi Curved Guilloché Triple-Axis Tourbillon Watch [Limited]

pag0501.01

credit badge
$61,999.00
$3,999.00 $61,999.00
--1451% OFF Sold out
Shipping calculated at checkout.
credit badge

Limited Edition: 70 Pics
Movement
Calibre: Peacock PAX9616
Movement Type: Mechanical
Power Reserve: 48 Hours
Jewels: 37 Jewels
Frequency: 21,600 A/h
Case
Case Material: 18K White Gold
Case Diameter: 43.5mm
Case Thickness: 14.95mm
Crystal: Anti-Reflective Sapphire Crystal
Crown: Push-Pull Crown
Water Resistance: 5 ATM
Strap
Strap Material: Fluoroelastomer Rubber
Design & Display
Display: Concentric Hour & Minute Discs
Tourbillon: Three-Axis Spherical Tourbillon
Dial Craft: Hand-Finished Curved Guilloché

  • 2 Years Warranty
  • Free Shipping & Returns
  • Secure Payment
View full details

Pre-Order & Payment Information

This product is currently available for pre-order. The estimated delivery date is June 30, 2027.

A 30% deposit ($18,599) is required to secure your order. The remaining balance will be due before the completed watch is delivered.

Please note that all images are for reference only. The final product appearance may vary slightly due to the production process. Please refer to the actual product for final specifications and appearance.

Deposit Payment Details

Company Name: Peacock Watch (Group) HK Limited
Company Address: RM 03, 24/F, HO KING COMM CTR, 2-16 FAYUEN ST, MONGKOK, KL
Bank Account (HSBC): 691-490270-838
Bank Name: HSBC HONG KONG
Bank Address: 1 Queen’s Road Central, Hong Kong
Bank Code: 004
SWIFT Code: HSBCHKHHHKH

Tai Chi: The Geometry of Cosmic Motion

Inspired by the ancient Chinese philosophy of Tai Chi and the timeless circulation of the cosmos, Peacock’s Tai Chi brings a pioneering three-axis spherical tourbillon to the wrist. At its heart, three independently rotating axes move in different rhythms, creating a mesmerizing three-dimensional ballet of mechanical precision. Surrounding this miniature universe, a hand-guilloché dial interprets the flowing geometry of the Lai Tai Chi Diagram through a sculpted, spiral surface. Contrasting Yin and Yang tones converge within an 18K white gold bezel, balancing Eastern philosophy with contemporary haute horlogerie. Every detail—from the microscopic tourbillon to the hand-carved curved dial—embodies Peacock’s pursuit of mechanical innovation, artisanal mastery, and the infinite motion of the universe.

A Universe in Three Dimensions

At the heart of Tai Chi, Peacock’s pioneering three-axis spherical tourbillon transforms traditional horology into three-dimensional mechanical art. Three concentric axes rotate at different speeds—60, 15, and 50 seconds per revolution—creating constantly shifting relationships within a single 60-second cycle. Miniaturized to an extraordinary 8.0mm diameter and weighing just 0.436g, the tourbillon becomes a microscopic universe in perpetual motion, where engineering precision and the watchmaker’s touch converge.

8 Millimetres of Mechanical Mastery

Peacock’s three-axis spherical tourbillon pushes miniaturization to an extraordinary level. Its cage measures just 8.0mm in diameter—less than half the diameter of a U.S. dime—yet houses 81 precision components. The largest measures only 3.0mm; the smallest, just 0.08mm, approaching the thickness of a human hair. Eight structural bridges and frames are crafted from aerospace-grade titanium, bringing the complete assembly to an astonishing 0.436g. Every component exists within an extremely restricted space, leaving virtually no room for error. This remarkable combination of lightness, density, and mechanical complexity is not achieved by scale alone, but through years of engineering refinement and the steady hands of highly skilled watchmakers.

81 Components, Assembled Without Compromise

Inside an 8.0mm cage, 81 microscopic components must be positioned and nested with absolute precision. Under magnification, even the slightest movement of a tweezer can disturb the delicate geometry. The watchmaker relies on years of accumulated muscle memory, exceptional hand-eye coordination, and controlled breathing to establish each connection. Titanium components, reduced to extremely fine dimensions, are particularly sensitive to assembly stress. Every screw must be tightened with precisely judged torque—secure enough to withstand resonance, yet gentle enough to prevent microscopic deformation. Here, craftsmanship is measured not in millimetres, but in the ability to sense and control forces invisible to the naked eye.

Three Axes. One Perfect Balance.

The ultimate challenge begins once the three-axis system is assembled: dynamic regulation. The three axes rotate independently at 60, 15, and 50 seconds per revolution, constantly shifting between synchronization and separation. Every five complete rotations form one recurring cycle, creating a continuously changing three-dimensional trajectory. The watchmaker must observe the tourbillon through this constantly evolving motion, identifying subtle variations in balance across multiple differential states and regulating the system toward equilibrium. Unlike a conventional tourbillon operating within a single plane, Tai Chi demands mastery of movement through three-dimensional space—where balance is not simply measured, but continuously rediscovered.

Tai Chi in Motion — Hand-Guilloché in Three Dimensions

Inspired by the Lai Tai Chi Diagram and its vision of an eternal cosmic cycle, Peacock transforms the ancient Yin-Yang form into a sculptural guilloché dial. Forty precisely calculated V-grooves spiral across the curved surface at a 9° rotation, requiring more than 400 precision cuts by hand. As the pattern flows from one pole to the other, light travels across its changing depths like a rotating galaxy—turning philosophy, geometry, and human craftsmanship into a living surface.

  • A Machine Created for the Curve

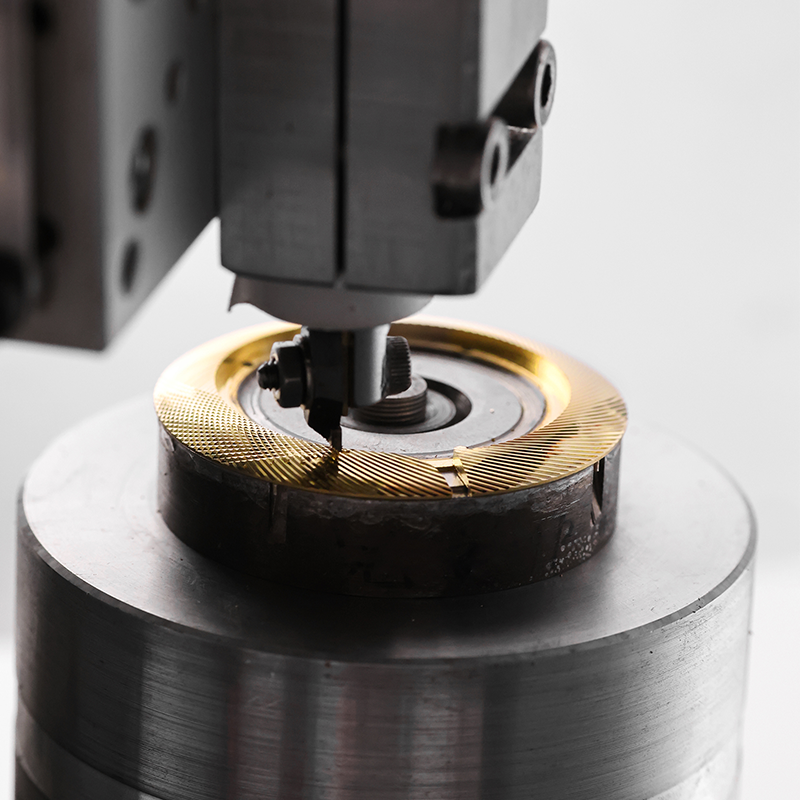

    Traditional guilloché is performed on a flat, two-dimensional plane, where the cutting trajectory and applied force remain relatively predictable. A curved dial changes everything. Its constantly shifting elevation forces the cutting tool into three-dimensional motion, making conventional machinery unsuitable. Peacock’s artisans therefore developed and specially modified dedicated equipment to follow the microscopic trajectory of the curved surface. This custom engineering forms the foundation of the entire process. It allows the artisan to work with the dial’s changing curvature while maintaining the precision demanded by hand-guilloché—a union of mechanical innovation and traditional craftsmanship rarely encountered in contemporary watchmaking.

  • 400+ Cuts, Controlled by Hand

    Across the dial, 40 V-grooves expand and contract from the outside inward, creating the flowing geometry of Tai Chi. Each groove is refined through 10 individual cutting passes, resulting in more than 400 precision operations across the curved surface. With every pass, the artisan must continuously adjust the cutting angle and pressure to accommodate subtle changes in curvature. A momentary tremor or incorrect turn can magnify across the three-dimensional surface, permanently damaging the base component. Once metal has been removed, there is no correction. Every cut therefore carries consequence, demanding patience, muscle memory, and absolute control.

  • When Precision Becomes a Physical Instinct

    Curved guilloché demands more than technical knowledge—it requires the artisan to develop an almost instinctive relationship with force and movement. As the brush or cutting tool travels across the rising and falling surface, pressure must constantly change. Too much force can soften the sharp definition of the grooves; too little may leave abrasive residue behind. After engraving, Peacock artisans perform a delicate hand-matting process, repeatedly brushing the surface along its natural curves. The result is a restrained, deeply textured finish in which light and shadow follow the geometry of the dial. Every surface is shaped through touch, patience, and years of accumulated experience.

  • Two Halves, One Living Surface

    The Yin and Yang components begin as separate elements, each independently finished and coloured before undergoing final assembly. Under magnification, the two precisely formed pieces must align and interlock seamlessly, preserving the continuity of the curved guilloché pattern. What begins as two individual components ultimately becomes one flowing surface, resembling a nebula caught in perpetual motion. This final assembly reflects the philosophy at the heart of Tai Chi: opposing forces are not merely contrasted, but brought into equilibrium. The result is a dial where craftsmanship, geometry, and Eastern philosophy become inseparable.

Time in Orbit

Tai Chi abandons conventional hands in favour of two concentric titanium discs that revolve around the central tourbillon. The inner disc displays the minutes; the outer disc displays the hours. Black Arabic numerals define the minute track, while the hour disc draws from traditional Chinese clerical script, reinterpreted through a contemporary lens. At 12 o’clock, a white diamond marks the hour; at 6 o’clock, a black diamond marks the minute. Yin and Yang become functional expressions of time.

Two Discs, One Rhythm

Two concentric titanium discs turn around the central tourbillon to display the hours and minutes. The outer disc carries the hours; the inner disc carries the minutes. A white diamond marks the hour, while a black diamond marks the minute—an understated Yin-Yang dialogue that transforms timekeeping into a distinctly Eastern expression of horological design.

  • 18K White Gold, Seamlessly Refined

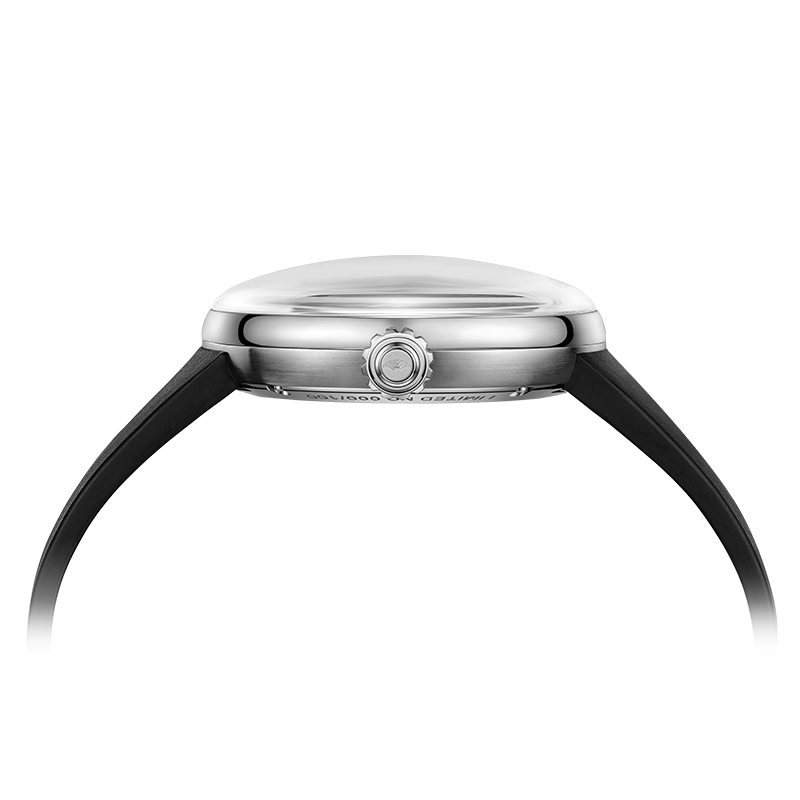

    An 18K white gold case pairs mirror-polished and circular-brushed surfaces, flowing seamlessly into the double-domed sapphire crystal for a sculpted, harmonious silhouette.

  • A Celestial Signature Beneath

    Hand-guilloché transforms the caseback into a miniature cosmic landscape, echoing the Tai Chi-inspired dial. Each piece bears subtle variations, making every watch uniquely its own.
